8 Bolt Heavy Pickup - #5000-8 Series

The 5000lb heavy pickup hub and spindle with associated components: dust cap, tapered bearing and cup, hub seal, wheel bolts, and cotter pin. Set against a white background.

8 Bolt Heavy Pickup - #5000-8 Series

$0.00

Designed to fit 8-bolt heavy pickup truck wheels, the 5000-8 is a common replacement part for those in the agricultural and industrial sectors.

Greased & Painted Assemblies Available
Hub Capacity Based on 1.125 Positive Wheel Offset at Speeds up to 20mph

Add To Cart

Eldale's 5000-8 heavy pickup hub specifications, including the bolt pattern, bolt circle dimension, and pilot size.

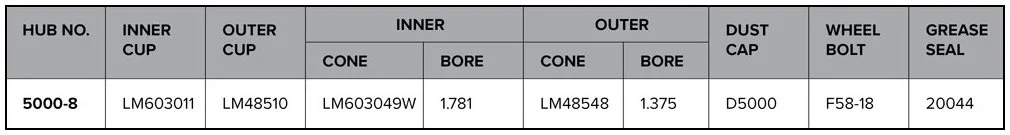

The 8-bolt 5000-8 hub's replacement components with associated part numbers. Includes inner and outer tapered bearings, cups, dust cap, and wheel bolts.

Eldale Machine & Tool's 5000-8 spindle's replacement parts, including the spindle nut, washer, and cotter pin.

see all products

- 2” Cold Roll
  - 7-1/4”
  - 10”
  - 12”
  - 14”
  - 15”
- Custom Sizing Available

- Designed to fit heavy pickup truck wheel
