10 Bolt - #871 Series

10 Bolt - #871 Series

$0.00

The 871 series of Eldale hubs and spindles boasts a 12,000lb capacity, a 10 bolt front pattern, and the ability to enhance the structural integrity of heavyweight implements such as grain carts.

Greased & Painted Assemblies Available
Stress Proof Spindles
Hub Capacity Based on 0 Wheel Offset at Tractor Speed up to 20mph

Quantity:

Add To Cart

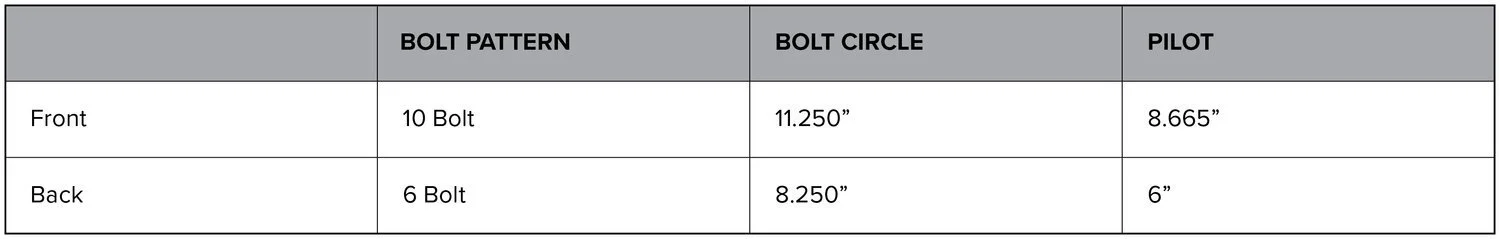

Eldale machine's 10-bolt, 12,000lb series hub specifications, including the bolt pattern, bolt circle, and pilot sizes for the front and back of the hub.

The 871 or 12000lb series Eldale hub's replacement components, including the inner and outer tapered bearings, cups, dust cap, and wheel bolts.

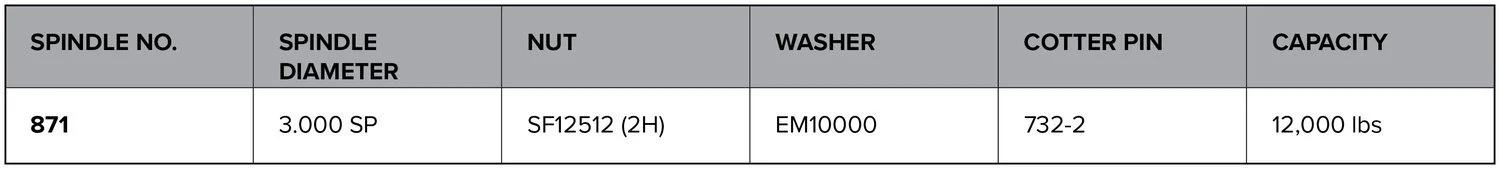

Eldale machine's 12000lb spindle's replacement components and associated part numbers, including the spindle nut, washer, and cotterpin.

see all products

- 3” Stress Proof
  - 20”
  - 24”
- Custom Sizing Available

- Grain Carts
