4 Bolt - #1250 Series

4 Bolt - #1250 Series

$0.00

The lightest of Eldale’s 4 bolt agricultural hubs and spindles, the 1250lb range promotes a secure base for small farming implements, augers, and other light-duty applications.

Greased and Painted Assemblies Available
Interchanges with the 411 Hub & Spindle
Hub Capacity based on .250 Negative Wheel Offset at Tractor Speeds up to 20MPH
Press in Bolt Option Available

Add To Cart

Eldale's 4-bolt 1250lb hub specification sheet, including bolt circle pattern and pilot dimensions.

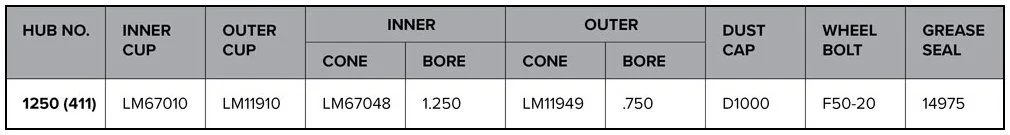

The 4-bolt 1250lb hub's replacement parts, including part numbers for the inner and outer tapered bearings, cups, dust cap, and hub seal.

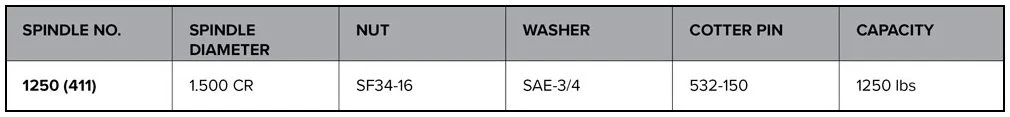

Eldale's 1250lb spindle's replacement parts and primary specs, including part numbers for the spindle nut, washer, and cotterpin.

see all products

- 1-1/2” Diameter Cold Roll
  - 12”
- Custom Sizing Available

- Small Farm Implements
- Augers
